DoF - Depth Of Field

Enabling DOF in FurryBall is very simple and takes only a few steps.

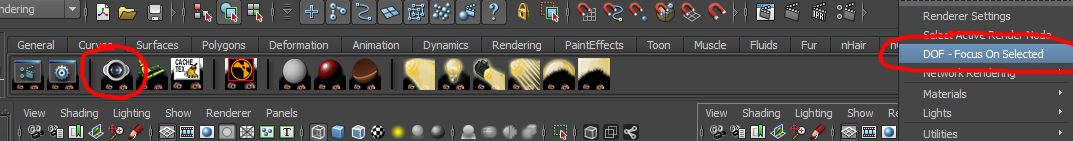

First, be sure you have enable Depth-of-Field in features. Then select an object where your focus should be and either select FurryBall menu -> DOF - Focus on Selected or the DOF icon on the shelf.

Now a DOF locator is created. If there already was a DOF locator for the current camera, it will be moved to the new position.

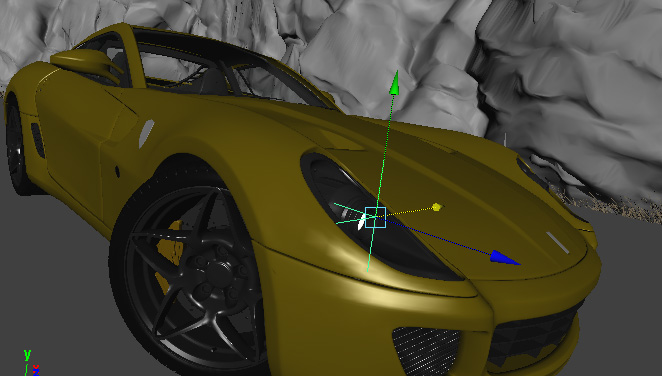

The DOF locator is selected and ready to move.

You can move the DOF locator around and your focus will change. Only the distance to the camera matters. A DOF locator is created for each camera and is automatically connected to its Focus Distance attribute. Also, the Depth of Field camera checkbox is automatically ticked.

NOTE: Since each camera has its own DOF locator, be sure to manipulate with the correct one for the selected camera.

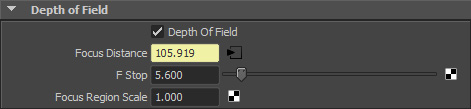

Select camera and scroll down to depth of field section.

Changing F stop will affect depth of field strength.

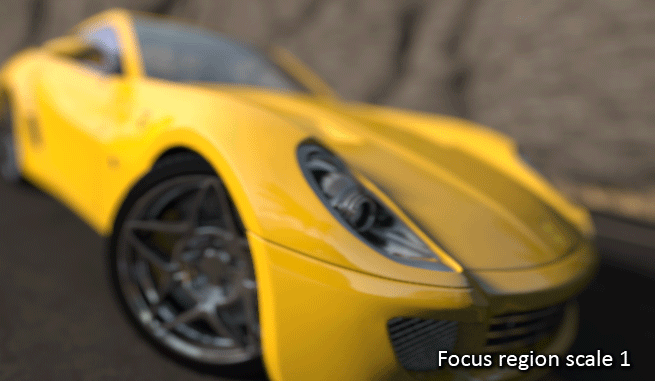

You might need to experiment with the Focus Region Scale camera attribute. Set it to lower values to get a very narrow focus region and to high values to get a wide focus.

Tips:

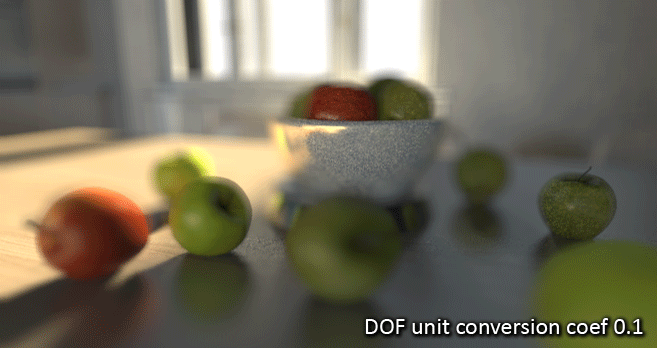

• When rendering scenes of too big or small scale, DoF unit conversion Coef can be helpful, Located  In Render Settings Node, under Features - Depth Of Field.
