• TIP - Attribute on Camera. You can set different DoF for each camera.
• Quality of DoF is driven by Primary rays - it mean, that Effect cost NO more rendertime!

Basic parameters are taken from Cinema.

Camera Mapping

Normal or Spherical 360°

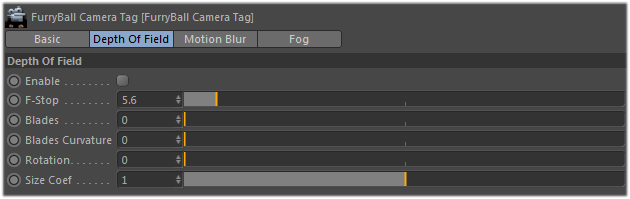

Depth of Field

F-Stop

F-Stop camera value

Blades

Number of blades of the Shutter (Affect on Bokeh effect)

0 - Circle

3 - Triangle

4 - Square

5 - Pentagonal...

Blades Curvature

Sharpness of blades -

0 is flat, 1 is circle

Rotation

Rotation of the blade

Size Coef

Size coefficient, if you not use real scale for the scene.

Increase or decrease the size of focused area (It will create Macro effect)

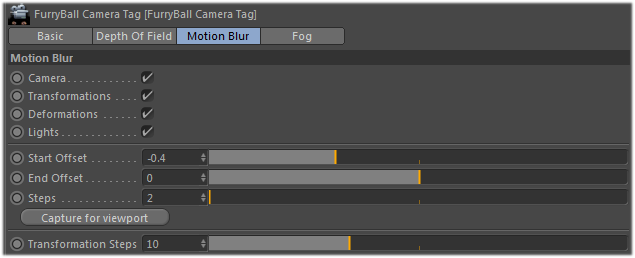

Motion Blur

• TIP - Attribute on camera. You can set different motion blur for each camera.

• Quality of Motion blur is driven by Primary rays - it means, that effect cost NO more rendertime!
• TIP - Maya Shutter Angle is NOT supported - use FurryBall parameters.

Camera, Transformations, Deformations, Lights

Enable or disable Motion blur for selected

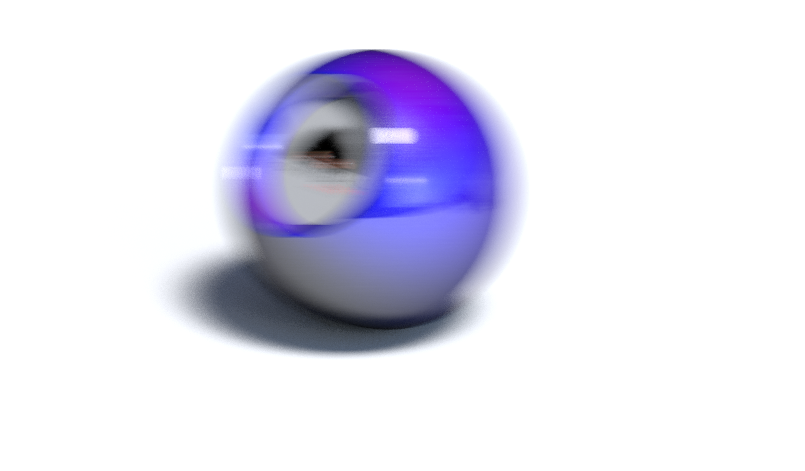

Shutter Angle 36° - 0.1 Offset                                                                                               Shutter Angle 144° - 0.4 Offset

Start Offset

How much frames BACK is motion blur captured

• TIP - default Start Offset -0.4 and 2 Steps means: If you render for example frame #4, your Motion blur will be counted from frames 3.6 and 4.0
• If you have Start Offset -1 and 11 Steps, it means for frame #4 it will take Motion blur from frames 3.0, 3.1, 3.2, 3.3, 3.4, 3.5, 3.6, 3.7, 3.8, 3.9, 4.0

End Offset

How much frames FORWARD is motion blur captured

Steps

Number of steps in-between FRAMES.

• TIP - Typically for small movement is 2 enough, but for long Motion blur, or rotated object, it has to be increased.

Capture for Viewport

Capture Motion blur for actual frame rendering in Viewport. (This has no affect for rendering to file or to Renderview)

Transformation Steps

Number of RENDERED steps. (Only for Rotation or Translation!)

It has affect only for RENDERING transformations - NOT for taken Steps from animation.

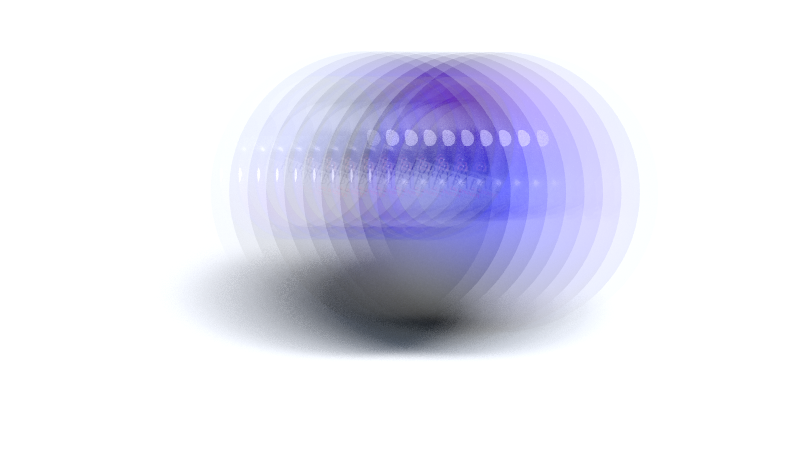

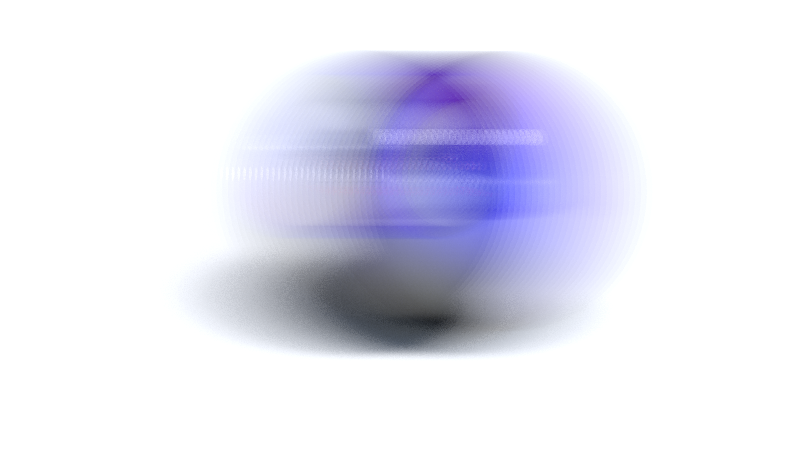

8 Transformation steps                                                                                                 30 Transformation steps

Fog

Very simple camera fog effect.

Enable Fog

Disable or enable effect

Fog color

Color of fog

Fog opacity

Opacity of fog

Fog Start - End

Area where the fog will be
