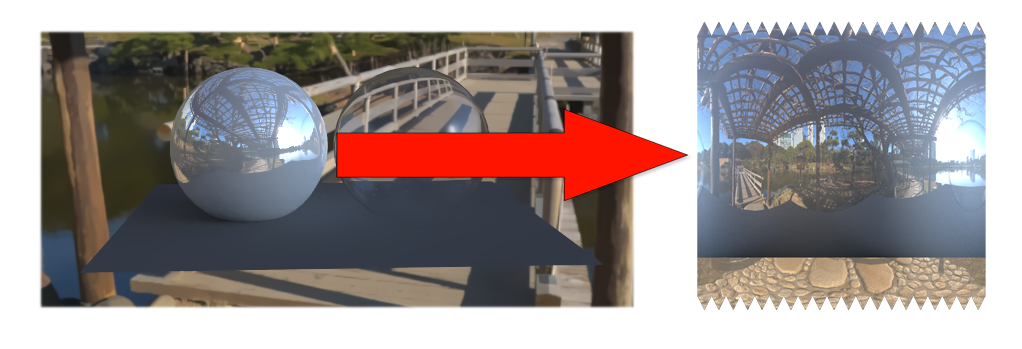

FurryBall / Texture baking / New

Will create new node with parameters.

• TIP - You can add more objects, or whole scene into one node, or create different nodes with different settings (Beauty, Shadows, Specular....)
• "Bake textures" in menu bake ALL object with ALL bake nodes, instead Bake texture under each node.

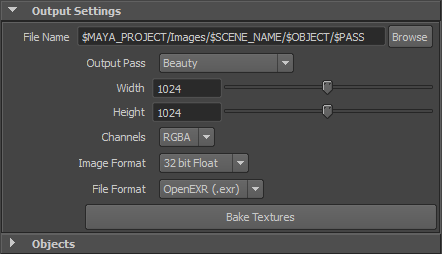

Output Settings

File Name

Path where will be the files renderer

The File Name attribute has a possibility to add several global variables to it and expand the values for every frame or settings used. Let's explain this on the following example, it is also the default filename and path:

       $MAYA_PROJECT/Images/$SCENE_NAME/$OBJECT/$PASS

This string tells the renderer to put the rendered files into a directory with the same name as the scene being rendered ($SCENE_NAME), this directory is under 'Images' subdirectory located in Maya project path ($MAYA_PROJECT). The file images will be named after the rendered object name used ($OBJECT)and selected output pass name ($PASS)will be added to it. The output path and files could then look something like this:

       C:/Maya Projects/My Project/Images/My Scene/Cube/Beauty.exr

       C:/Maya Projects/My Project/Images/My Scene/Sphere/Beauty.exr

       C:/Maya Projects/My Project/Images/My Scene/Cube/Wireframe.exr

       C:/Maya Projects/My Project/Images/My Scene/Sphere/Wireframe.exr

       .....

If the path doesn't exist it will be created.

Here is the list of variables that will be automatically expanded when used:

• $MAYA_PROJECT - path to currently set project
• $SCENE_NAME - name of currently opened scene
• $RENDER_SETTINGS - name of currently active render settings node (will be expanded into, for example: "furryBallRenderSettingsDefault")
• $PASS - name of Render pass
• $OBJECT - name of rendered object
• $PATH - full path name of rendered object
• $FB_VERSION - FurryBall version
• # - number of frame currently rendered, number of digits is specified by Frame padding attribute in global settings

• TIP - Those variables can be used to path and also to filename. You can render this way to specific directories for each Pass, Project or Render settings.
• TIP - Those variables can be displayed when you click on information icon at the right.

• Advanced TIP - It is possible to define custom variables by creating Python script file 'FurryBallEnvVarUser.py' located in 'scripts' subdirectory where FurryBall is installed. In this directory file 'FurryBallEnvVarUser.py.example' exists. You can rename it to 'FurryBallEnvVarUser.py' and you can start with editing it.

Output pass

There is supported:

• BEAUTY - Compilation of other passes, this is what the final result will look like.
• DEPTH - Screen space depth values mapped to grey scale.
• DIRECT DIFUSE - Primary colors and textures
• DIRECT SPECULAR - Specular from lights only
• INDIRECT DIFUSE - Indirect difuse from other object colors and textures
• INDIRECT SPECULAR - Indirect Specular from all scene (like reflection)
• REFLECTIONS - Only reflections are rendered. Result should be added to the original layer to add reflections.
• TRANSPARENCY - Transparency pass only
• SUBSURFACE SCATTERING - SSS pass only
• SHADOWS - Only shadows are rendered. Result should be multiplied with the original layer to add shadows.
• ALPHA - Display only alpha channel from rendered frame.
• NORMALS - Normals of all objects (world-space)
• WIREFRAME - Display all objects as wireframe. Color can be changed by Wireframe Color attribute.
• UVs - Display UV coordinates of all objects.
• MATTE - Colored matte pass (color matte can be set on FurryBall material)
• AMBIENT OCCLUSION - Intensity of ambient occlusion in scene.
• WORLD POSITION
• SURFACE COLOR

Channels

RGB or RGBA in single image (You can select if Alpha will be rendered in same image)

(Overwrite main settings in Common in Output Settings)

Image format

Bit depth for final image 8-16-32 bit.

• TIP - Be careful to select proper file format. JPG is for example 8bit only, PNG can be 16bit and EXR can be 32bit...

(Overwrite main settings in Common in Output Settings)

File format

Output file format to save rendered images to. Note that not all formats can handle all depths. We OpenEXR formats for images with bigger depth than 16bit.

(Overwrite main settings in Common in Output Settings)

Bake textures

Bake object or objects in THS SELECTED NODE

Objects

Can be added or removed object from this Bake node.
